MODULE DESCRIPTIONS

All the classes (table 3.2 and figure 3.2) will be desribed in detail in this chapter. Each subsection of this chapter contains the specifications for one class, and the section name will be the class name.

SF_Block



General description

The SF_Block is an abstract base class, i.e. there cannot be an instance of it. The SF_Network class and all the atomic blocks described in section 4.2 of the functional specification [] are derived from this class.

This class is the basic building block of the system. Theoretically networks contain blocks only.

Interface

class SF_Block
{
public:
                    SF_Block (SF_Input_Terminal inputs[],
                              SF_Output_Terminal outputs[],
                              unsigned int num_inputs,
                              unsigned int num_outputs,
                              const char *instance_name = 0);
    virtual         ~SF_Block ();
    inline const char *get_class_name () const;
    inline const char *get_instance_name () const;
    inline void     set_instance_name (const char *instance_name);
    inline SF_Network *get_host_network () const;
    inline void     set_host_network (SF_Network *host);

    virtual void    print (ostream *stream) const = 0;
    virtual bool    is_functional () const = 0;
    inline bool     is_potential_source () const;
    inline bool     is_potential_sink () const;

    // simulation
    virtual void    finish ();          // post-simulation cleanup
    virtual void    initialize ();      // pre-simulation initializations
    virtual void    simulate () = 0;    // one round of simulations

    // for BFS ()
    inline void     address_first_output_connection ();
    inline SF_Block *get_next_output_connection ();

protected:
    const char *    class_name;           // generic name for the kind of this block
    const char *    instance_name;        // an intuitive name for the very block
    SF_Network *    host_network;         // the network this block belongs to
    bool            potential_source;     // true if the block *can* act as a source
    bool            potential_sink;       // true if the block *can* act as a sink

    SF_Input_Terminal *input_terminals;   // array of input terminals
    SF_Output_Terminal *output_terminals; // array of output terminals
    unsigned int    num_input_terminals;  // number of input term:s
    unsigned int    num_output_terminals; // number of output term:s
    unsigned int    output_terminal_index;// for sequential access to output term:s

    // internally for {address_first, get_next}_output_connection ()
    inline void     address_first_output_terminal ();
    inline SF_Output_Terminal *get_next_output_terminal ();

    // for initialize ()
    void            clear_frames ();


private:
};

Implementation

SF_Block::SF_Block (...)

This is the constructor.



2 instance_name = instance_name

3 host_network = NULL

4 potential_source = FALSE

5 potential_sink = FALSE

6 input_terminals = inputs

7 output_terminals = outputs

8 num_input_terminals = num_inputs

9 num_output_terminals = num_outputs

10 output_terminal_index = 0

SF_Block::print (ostream *stream)

• if the block is nonfunctional, prints (not functional) after the block name

Error handling

SF_Exception



General description

Interface

class SF_Exception
{
public:
                    SF_Exception (const SF_Block *origin,
                                  const char *description);
    virtual         ~SF_Exception ();

    const SF_Block *origin;       // the initiator of the exception or NULL
    const char *    description;  // textual information
};

Implementation

Error handling

SF_Frame



General description

A frame is a short segment of a (currently one-dimensional) signal. Frames are used to pass data around in networks.

Interface

class SF_Frame
{
public:
                    SF_Frame (SF_Frequency sample_rate);
    virtual         ~SF_Frame ();
    inline SF_Sample *get_signal () const;
    inline SF_Length get_signal_length () const;
    inline void     set_short_signal (bool short_signal);
    void            update_frame_length (SF_Frequency sample_rate);

    // for global initialization FIXME only
    // access to the static data member duration (DO NOT TOUCH)
    static inline SF_Time get_duration () const;
    static inline void set_duration (SF_Time dur);

private:
    SF_Sample *     signal;       // frame_length number of SF_Samples
    SF_Length       frame_length;
    bool            short_signal; // true if get_length() is actually frame_length - 1

    static SF_Time  duration;  // declaration of a static data member
};

Implementation

Error handling

SF_Input_Terminal



General description

This class implements the pathway for delivery of data into a block. The class implements also the destination end of a wire.

Interface

class SF_Input_Terminal : public SF_Terminal
{
public:
                    SF_Input_Terminal (const char *name,             // sample_rate and relative_s_r
                                       const SF_Block *host,         // are optional
                                       bool multiple_inputs,
                                       SF_Frequency sample_rate,
                                       double relative_sample_rate);
                    SF_Input_Terminal (const char *name,
                                       const SF_Block *host,
                                       SF_Sample default,
                                       bool multiple_inputs,
                                       SF_Frequency sample_rate,
                                       double relative_sample_rate);
    virtual         ~SF_Input_Terminal ();

    // for connect () and disconnect ()
    void            add_input (const SF_Frame *in); // throws SF_Exceptions
    void            remove_input (const SF_Frame *in);

    inline int      get_degree () const; // the number of connections

    void            address_first_frame ();
    SF_Frame *      get_next_frame ();

private:
    inline bool     is_full () const; // true if no more connections are allowed
    bool            enable_default;   // if a default value is used with absent wire
    SF_Sample       default_value;    // the default value to use
    SF_List *       input_list;       // list of SF_Frames from which to get data
    int             degree;
    bool            multiple_inputs;
};

Implementation

void SF_Input_Terminal::add_input (const SF_Frame *in)

This function is for the creation of wires. This function is called by SF_Output_Terminal::connect ().

1 ADD (input_list, in)

$$\textit{degree} = \textit{degree} + 1$$ 2

void SF_Input_Terminal::remove_input (const SF_Frame *in)

This function is for the destruction of wires. This function is called by SF_Output_Terminal::disconnect ().

2 REMOVE (input_list, in)

$$\textit{degree} = \textit{degree} - 1$$ 3

4 catch (SF_Exception e)

5 throw SF_Exception (host_block, ``Internal error.'')

Error handling

SF_List



General description

A generic ordered list of pointers.

Interface

class SF_List
{
public:
                    SF_List ();
    virtual         ~SF_List ();
    void            add (const void *content);
    void            remove (const void *content);
    bool            find (const void *content);    // returns true, if the node is found
    inline bool     is_empty () const;
    inline void     address_first ();
    inline const void *get_next ();
    void            sort (int (*comparison_function) (const void *a, const void *b));

private:
    SF_List_Node *  search (const void *content);
    SF_List_Node *  nil;
    SF_List_Node *  current;
}

Implementation

SF_List::SF_List ()

Create an empty list.

$$a.\textit{next} = a$$ 2

$$a.\textit{prev} = a$$ 3

$$a.\textit{content} = \textsc{null}$$ 4

5 nil = a

6 current = a

void SF_List::add (void *content)

Add a new node to the end of the list.

$$a.\textit{prev} = \textit{nil}.\textit{prev}$$ 2

$$\textit{nil}.\textit{prev}.\textit{next} = a$$ 3

$$\textit{nil}.\textit{prev} = a$$ 4

$$a.\textit{next} = \textit{nil}$$ 5

$$a.\textit{content} = \texttt{content}$$ 6

void SF_List::remove (void *content)

Remove a node from the list.

$$a = \textsc{search} (\texttt{content})$$ 1

$$a = \textsc{null}$$ 2

3 throw SF_Exception (NULL, ``Node not found'')

$$a.\textit{prev}.\textit{next} = a.\textit{next}$$ 4

$$a.\textit{next}.\textit{prev} = a.\textit{prev}$$ 5

6 delete a

$$\textit{current} = \textit{nil}$$ 7

SF_List_Node *SF_List::search (void *content)

Search for a certain node in the list.

$$a = \textit{nil}.\textit{next}$$ 1

$$(a \ne \textit{nil}) (a.\textit{content} \ne \texttt{content})$$ 2

$$a = a.\textit{next}$$ 3

$$a = \textit{nil}$$ 4

5 return NULL

6 return a

void SF_List::address_first ()

Reset the internal state of the list so that the succeeding get_next () will return the first node on the list.

$$\textit{current} = \textit{nil}$$ 1

void *SF_List::get_next ()

Return the content of the next node on the list.

2 return NULL

3 current = current.next

4 return current.content

void SF_List::sort (int (*comparison_function) (const void *a, const void *b))

Sort the list in ascending order according to the user supplied comparison function. The comparison function must return an integer less than, equal to, or greater than zero to indicate if the content a is to be considered less than, equal to, or greater than the content b, respectively.

Error handling

SF_List_Node



General description

The SF_List_Node class is a dumb class in the sense that it is essentially a plain data structure.

Interface

class SF_List_Node
{
public:
                    SF_List_Node ();
                    SF_List_Node (const void *content);
    virtual         ~SF_List_Node ();
    const void *    content;
    SF_List_Node *  next;
    SF_List_Node *  prev;

private:
}

Implementation

Error handling

SF_Network



General description

The main class used to model dataflow diagrams.

Interface

class SF_Network : public SF_Block
{
public:
                    SF_Network ();
    virtual         ~SF_Network ();

    // block handling
    void            add_block (SF_Block &block);
    void            remove_block (SF_Block &block);

    void            check (); // throws SF_Network_Sanity_Exceptions
    virtual void    print (ostream *stream);

    inline SF_Time  get_simulation_duration () const;
    inline void     set_simulation_duration (SF_Time dur_ms);

    void            start_simulation ();
    void            stop_simulation ();

    virtual void    finish ();
    virtual void    simulate ();
    virtual void    initialize (); // throws SF_Network_Sanity_Exceptions

    inline bool     is_running () const;
    inline bool     is_error () const;
    inline SF_Exception *get_simulation_exception () const;    // simulation-time exceptions

    inline bool     is_modified () const;
    inline void     set_modified (bool modified);

private:
    // partitioning the blocks
    void            sort_block_list ();
    void            BFS (SF_Network_Block_List_Content *source);

    SF_List *       block_list;  // list of blocks in the network

    bool            modified;

    SF_Time         simulation_duration;

    // child process
    pid_t           simulation_child;
    bool            simulation_running;
    SF_Exception *  simulation_exception;
};

Implementation

virtual void SF_Network::initialize ()

This function will check the consistency of the network, partition it to layers FIXME

2 return

$$n \in$$ 3

4 SET_RANK (n, 0)

5 INITIALIZE (n)

$$n \in$$ 6

7 if (IS_POTENTIAL_SOURCE (n.block) and (IS_FUNCTIONAL (n.block) then

$$\in$$ 8

9 SET_VISITED (n, FALSE)

10 BFS (n)

11 SORT (block_list)

12 modified = FALSE

virtual void SF_Network::simulate ()

foobar FIXME

$$n \in$$ 1

2 SIMULATE (n)

virtual void SF_Network::finish ()

foobar FIXME

$$n \in$$ 1

2 FINISH (n)

void SF_Network::BFS (SF_Network_Block *source)

The BFS function implements the breadth-first search (BFS) algorithm according to [17, p. 261].

The basic principle is to calculate the rank of a block, i.e. its distance to the farthest source. This distance can be defined otherwise as the greatest number of hops (wirings) between a node and a source.

In the case of recursive networks there is an implicit delay within every feedback loop. This implicit delay is not counted in into the rank; the feedback loops are NOT traversed while finding the farthest source. This is accomplished so that the finding algorithm must recognize the situations when it has come back to a node it has already visited.

$$s \equiv \texttt{source}$$ 1

$$t = \textsc{false}$$ 2

3 SET_VISITED (s, TRUE)

4 SET_RANK (s, 1)

$$Q=\{s\}$$ 5

$$Q \ne \varnothing$$ 6

$$u=\textsc{head} (Q)$$ 7

$$v \in u$$ 8

9 if v.visited = FALSE then

10 SET_VISITED (v, TRUE)

$$u.\textit{rank}+1$$ 11

12 ENQUEUE (Q, v)

13 if IS_POTENTIAL_SINK (v.block) then

$$t = \textsc{true}$$ 14

15 DEQUEUE (Q)

$$t = \textsc{false}$$ 16

17 throw SF_Exception (s.block, ``No sink after this source'')

void SF_Network::add_block (SF_Block &block)

Add a block to the end network. The block must be added to the end of the block list to ensure the stability of the sorting algorithm. (FIXME?)

void SF_Network::remove_block (SF_Block &block)

Remove a block from the network.

void SF_Network::start_simulation ()

foobar FIXME

2 throw SF_Exception (this, ``Network already running'')

3 p = FORK ()

$$p = \textsc{null}$$ 4

5 INITIALIZE ()

6 i=0

$$(i \times \textit{frame\_duration\_FIXME} < \textit{simulation\_duration})$$ 7

8 and not (SIGINT caught) do

9 SIMULATE ()

10 i = i + 1

11 FINISH ()

12 else

$$\textit{simulation\_running}=\textsc{true}$$ 13

$$\textit{simulation\_child}=p$$ 14

void SF_Network::stop_simulation ()

foobar FIXME

virtual void SF_Network::print (ostream *stream)

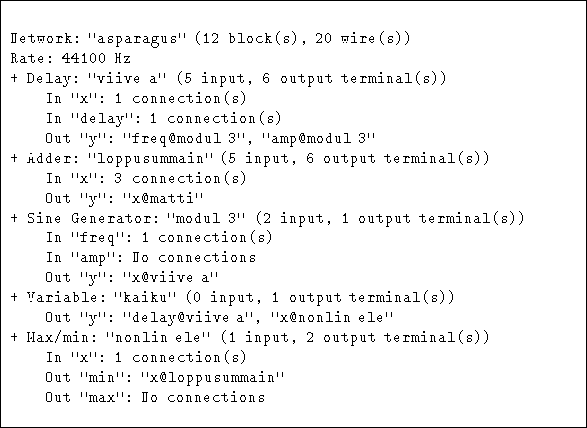

Figure 4.1: An example printout.

Error handling

SF_Network_Block_List_Content



General description

This class is a dumb class in the sense that it is essentially a plain data structure.

Interface

class SF_Network_Block_List_Content
{
public:
                    SF_Network_Block_List_Content (const SF_Block *block);
    virtual         ~SF_Network_Block_List_Content ();
    inline int      compare (const void *a, const void *b) const;

    int             rank;
    bool            visited;
    SF_Block *      block;

private:
};

Implementation

int SF_Network_Block_List_Content::compare (const void *a, const void *b)

inline int compare (const void *a, const void *b) const
{
    return ((SF_Network_Block_List_Content *)a)->rank
           - ((SF_Network_Block_List_Content *)b)->rank;
}

Error handling

SF_Network_Sanity_Exception



General description

The base class of all the exceptions the program throws.

Interface

class SF_Network_Sanity_Exception : SF_Exception
{
public:
                    SF_Network_Sanity_Exception (const SF_Block *origin,
                                                 const char *description);
    virtual         ~SF_Network_Sanity_Exception ();
};

Implementation

Error handling

SF_Output_Terminal



General description

This class implements the pathway for delivery of data out of a block. The class implements also the connection of blocks (terminals) together and is source end of a wire.

Interface

class SF_Output_Terminal : public SF_Terminal
{
public:
                    SF_Output_Terminal (const char *name,
                                        const SF_Block *host,
                                        SF_Frequency sample_rate,      // sample_rate and
                                        double relative_sample_rate);  // r_s_r are optional
    virtual         ~SF_Output_Terminal ();

    void            connect (SF_Input_Terminal &dest);
    void            disconnect (SF_Input_Terminal &dest);

    SF_Output_Terminal &operator>> (SF_Input_Terminal &destination); // operator `>>' duplicates
                                                                     // the functionality of
                                                                     // Network::connect ()

private:
    SF_List *       wire_destinations; //list of input terminals
    SF_Frame *      output;            //the frame which is filled every epoch
};

Implementation

void SF_Output_Terminal::connect (SF_Input_Terminal &dest)

The connection function is called by the user.



$$d \equiv \texttt{dest}$$ 1

2 if not IS_FULL (d) then

3 ADD (d, wire_destinations)

4 SET_MODIFIED (GET_HOST_NETWORK (host_block), TRUE)

5 ADD_INPUT (d, output)

6 else

7 throw SF_Exception (GET_HOST_BLOCK (d), ``No more connections allowed to input terminal'')

void SF_Output_Terminal::disconnect (SF_Input_Terminal &dest)

The disconnection function is called by the user.

$$d \equiv \texttt{dest}$$ 1

$$d \in \texttt{wire\_destinations}$$ 2

3 REMOVE (d, wire_destinations)

4 SET_MODIFIED (GET_HOST_NETWORK (host_block), TRUE)

5 REMOVE_INPUT (d, output)

6 else

7 throw SF_Exception (host_block, ``No such connection'')

Error handling

SF_Queue



General description

A generic data queue of pointers.

Interface

class SF_Queue
{
public:
                    SF_Queue ();
    virtual         ~SF_Queue ();
                    enqueue (const void *content);
    const void *    dequeue ();
    inline bool     is_empty () const;
    inline const *  get_head () const;

private:
    SF_Queue_Node * head;
    SF_Queue_Node * tail;
}

Implementation

void SF_Queue::enqueue (const void *content)

Add a new node to the end of the queue.

$$a.\textit{content} = \texttt{content}$$ 2

$$a.\textit{next} = \textsc{null}$$ 3

4 if head = NULL then

$$\textit{head} = a$$ 5

6 else

$$\textit{tail}.\textit{next} = a$$ 7

$$\textit{tail} = a$$ 8

void *SF_Queue::dequeue ()

Remove the first node of the queue.

2 throw SF_Exception (NULL, ``Queue underflow'')

3 else

$$a = \textit{head}.\textit{content}$$ 4

$$t = \textit{head}$$ 5

$$\textit{head} = \textit{head}.\textit{next}$$ 6

7 delete t

8 return a

bool SF_Queue::is_empty ()

Return true if queue is empty, false otherwise.

Error handling

SF_Queue_Node



General description

The SF_Queue_Node class is a dumb class in the sense that it is essentially a plain data structure.

Interface

class SF_Queue_Node
{
public:
                    SF_Queue_Node ();
                    SF_Queue_Node (const void *content);
    virtual         ~SF_Queue_Node ();
    const void *    content;
    SF_Queue_Node * next;

private:
}

Implementation

Error handling

SF_Terminal



General description

The base class of SF_Input_Terminal and SF_Output_Terminal.

Interface

class SF_Terminal
{
public:
                    SF_Terminal (const char *name,
                                 const SF_Block *host,
                                 SF_Frequency sample_rate,      // sample_rate and
                                 double relative_sample_rate);  // r_s_r are optional
    virtual         ~SF_Terminal ();

    inline const char *     get_name () const;
    inline const SF_Block * get_host_block () const;
    inline SF_Frequency     get_sample_rate () const;
    inline void     set_sample_rate (SF_Frequency fs);
    inline double   get_relative_sample_rate () const;
    inline void     set_relative_sample_rate (double rfs);

private:
    const char *    name;
    const SF_Block *host_block;
    SF_Frequency    sample_rate;
    double          relative_sample_rate; //relative to all the other terminals in a block
};

Implementation

Error handling

SF_Adder



General description

Adds an arbitrary number of input signals pointwise.

Interface

class SF_Adder : public SF_Block
{
public:
                    SF_Adder ();
    virtual         ~SF_Adder ();
    virtual void    finish ();
    virtual void    initialize ();
    virtual void    simulate ();

    SF_Input_Terminal inputs[1];
    SF_Output_Terminal outputs[1];
    enum Input_Indices {X};
    enum Output_Indices {Y};
};

Implementation

SF_Adder::SF_Adder ()

This is the constructor.

2 inputs[0] = SF_Input_Terminal ("x", this, TRUE)

3 outputs[0] = SF_Output_Terminal ("y", this)

4 potential_source = FALSE

5 potential_sink = FALSE

SF_Adder::~SF_Adder ()

This is the destructor.

virtual void SF_Adder::simulate ()

This function calculates the sum of the inputs.

$$s[i] \in \textit{y}$$ 1

2 s[i] = 0

$$f \in \textit{x}$$ 3

$$s[i] \in f$$ 4

$$\textit{y}.\textit{signal}[i] = \textit{y}.\textit{signal}[i] + s[i]$$ 5

Error handling

The class throws mathematics exceptions on error conditions.

SF_Band_Pass_Filter



General description

Filter input data with a $2^{\textrm{nd}}$-order IIR band-pass filter.

Interface

class SF_Band_Pass_Filter : public SF_Block
{
public:
                       SF_Band_Pass_Filter ();
    virtual            ~SF_Band_Pass_Filter ();
    virtual void       finish ();
    virtual void       initialize ();
    virtual void       simulate ();

    SF_Input_Terminal inputs[3];
    SF_Output_Terminal outputs[1];
    enum Input_Indices {X, F1, F2};
    enum Output_Indices {Y};

private:
    SF_Sample          a0, a1, a2;
    SF_Sample          b0, b1, b2;
    SF_Sample          past_x[2], past_y[2];
};

Implementation

SF_Band_Pass_Filter::SF_Band_Pass_Filter ()

This is the constructor. It is essentially identical to the constuctor of SF_Adder (section 4.14), except for the following aspects:

virtual void SF_Band_Pass_Filter::simulate ()

This function filters the input signal.

$$f_s = \textsc{get\_sample\_rate} (\textit{x})$$ 1

$$s[i] \in \textit{x}$$ 2

3 Calculate a0, a1, a2, b0, b1 and b2 from f1, f2 and f_s according to Table 4.1 from [].

$$t = \textit{b2} \times \textit{past\_x}[1] + \textit{b1} \times \textit{past\_x}[0] + \textit{b0} \times s[i]$$ 4

$$- \textit{a2} \times \textit{past\_y}[1] - \textit{a1} \times \textit{past\_x}[0]$$

5 t = t / a0

$$\textit{y}.\textit{signal}[i] = t$$ 6

7 past_y[1] = past_y[0]

8 past_y[0] = t

9 past_x[1] = past_x[0]

10 past_x[0] = s[i]

Error handling

The class throws mathematics exceptions on error conditions.

SF_Band_Stop_Filter

  Analoguous to 4.15 SF_Band_Pass_Filter.

SF_Delay_Line



General description

Interface

class SF_Delay_Line : public SF_Block
{
public:
                       SF_Delay_Line (SF_Time memory);
    virtual            ~SF_Delay_Line ();
    virtual void       finish ();
    virtual void       initialize ();
    virtual void       simulate ();

    inline void        set_delay_memory (SF_Time memory);
    inline SF_Time     get_delay_memory () const;

    SF_Input_Terminal inputs[2];
    SF_Output_Terminal outputs[1];
    enum Input_Indices {X, D};
    enum Output_Indices {Y};

private:
    SF_Sample          interpolate_delay_line (SF_Time delay);
    SF_Time            delay_memory;         // length of the delay line memory
    unsigned int       delay_memory_length;  // length of the delay line memory in samples
    SF_Sample *        delay_line;
    unsigned int       current_index;        // index to delay_line
    SF_Sample          fractional_delay_filter_state;
};

Implementation

SF_Delay_Line::SF_Delay_Line ()

This is the constructor. It is essentially identical to the constuctor of SF_Adder (section 4.14), except for the following aspects:

virtual void SF_Delay_Line::initialize ()

The pre-simulation initialization.

$$f_s = \textsc{get\_sample\_rate} (\textit{x})$$ 1

$$l = \left\lfloor \textit{delay\_memory} \times f_s \times 10^{-3}\right\rfloor + 1$$ 2

3 delay_memory_length = l

$$(l - 1)/f_s \times 10^{3}$$ 4

5 delay_line = new SF_Sample[l]

6 if delay_line = NULL then

7 throw SF_Exception (this, ``Out of memory'')

$$s[i] \in \textit{delay\_line}$$ 8

9 s[i] = 0

virtual void SF_Delay_Line::simulate ()

This function delays the input signal.

$$s[i] \in$$ 1

2 delay_line[current_index = s[i]

3 current_index = MODULO (current_index + 1, delay_memory_length)

$$s[i] \in$$ 4

5 if d[i] < 0 then

6 throw SF_Exception (this, ``Negative delay'')

$$d[i] \gt \textit{delay\_memory}$$ 7

8 throw SF_Exception (this, ``Delay exceeds maximum delay'')

9 s[i] = INTERPOLATE_DELAY_LINE (d[i])

SF_Sample SF_Delay_Line::interpolate_delay_line (SF_Time delay)

This function carries out the interpolation from the delay line (see Dattorro [4]).

$$f_s = \textsc{get\_sample\_rate} (\textit{x})$$ 1

$$a = \texttt{delay} \times f_s \times 10^{-3}$$ 2

$$i = \left\lfloor a \right\rfloor$$ 3

4 f = a - i

5 c = (1 - f)/(1 + f)

$$w = c \times \textsc{modulo} (\textit{current} - i - 1 + \textit{delay\_memory\_length}, \textit{delay\_memory\_length})$$ 6

$$+ \textsc{modulo} (\textit{current} - i - 2 + \textit{delay\_memory\_length}, \textit{delay\_memory\_length})$$

$$v = w - c \times \textit{fractional\_delay\_filter\_state}$$ 7

$$\textit{fractional\_delay\_filter\_state} = v$$ 8

9 return v

Error handling

The class throws mathematics exceptions on error conditions.

SF_File_Input



General description

Interface

class SF_File_Input : public SF_Block
{
public:
                   SF_File_Input ();
virtual            ~SF_File_Input ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_File_Output



General description

Interface

class SF_File_Output : public SF_Block
{
public:
                   SF_File_Output ();
virtual            ~SF_File_Output ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_High_Pass_Filter

  Analoguous to 4.15 SF_Band_Pass_Filter.

SF_Low_Pass_Filter

  Analoguous to 4.15 SF_Band_Pass_Filter.

SF_Max_Min



General description

Interface

class SF_Max_Min : public SF_Block
{
public:
                   SF_Max_Min ();
virtual            ~SF_Max_Min ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_Multiplier

  Analoguous to 4.14 SF_Adder.

SF_Negation



General description

Interface

class SF_Negation : public SF_Block
{
public:
                   SF_Negation ();
virtual            ~SF_Negation ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_Noise_Generator



General description

Interface

class SF_Noise_Generator : public SF_Block
{
public:
                   SF_Noise_Generator ();
virtual            ~SF_Noise_Generator ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_Quantizer



General description

Interface

class SF_Quantizer : public SF_Block
{
public:
                   SF_Quantizer ();
virtual            ~SF_Quantizer ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_Reciprocal



General description

Interface

class SF_Reciprocal : public SF_Block
{
public:
                   SF_Reciprocal ();
virtual            ~SF_Reciprocal ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_Sine_Generator



General description

Interface

class SF_Sine_Generator : public SF_Block
{
public:
                   SF_Sine_Generator ();
virtual            ~SF_Sine_Generator ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling

SF_Variable



General description

Interface

class SF_Variable : public SF_Block
{
public:
                   SF_Variable ();
virtual            ~SF_Variable ();
virtual void       finish ();
virtual void       initialize ();
virtual void       simulate ();

private:
};

Implementation

Error handling
